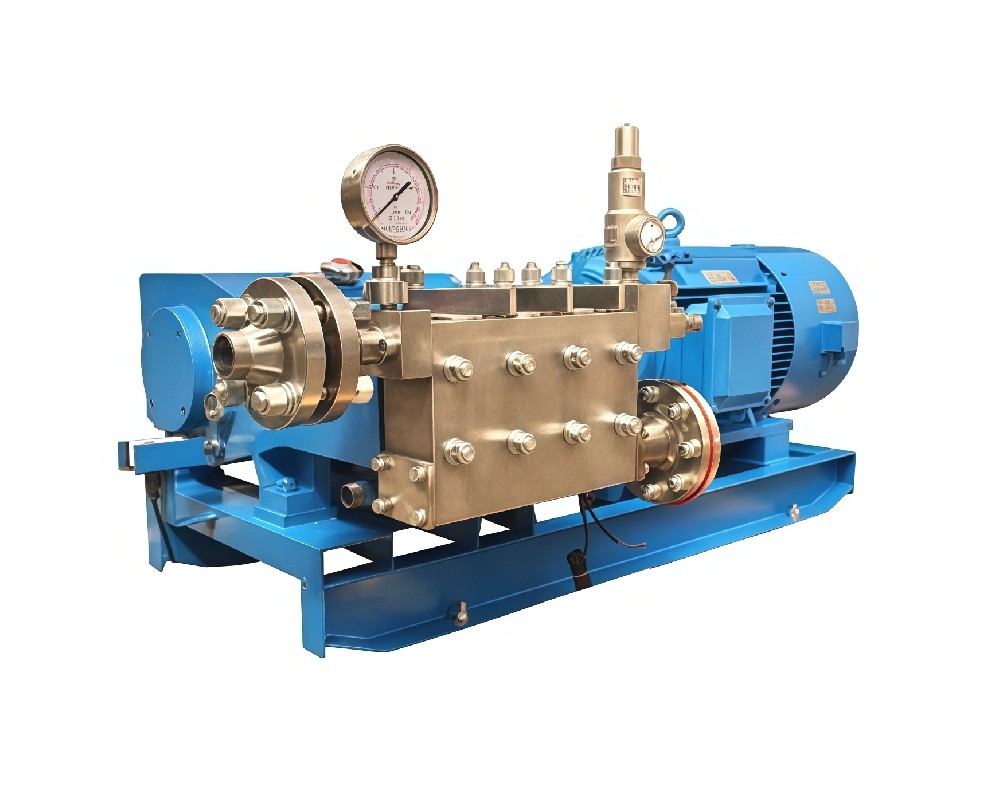

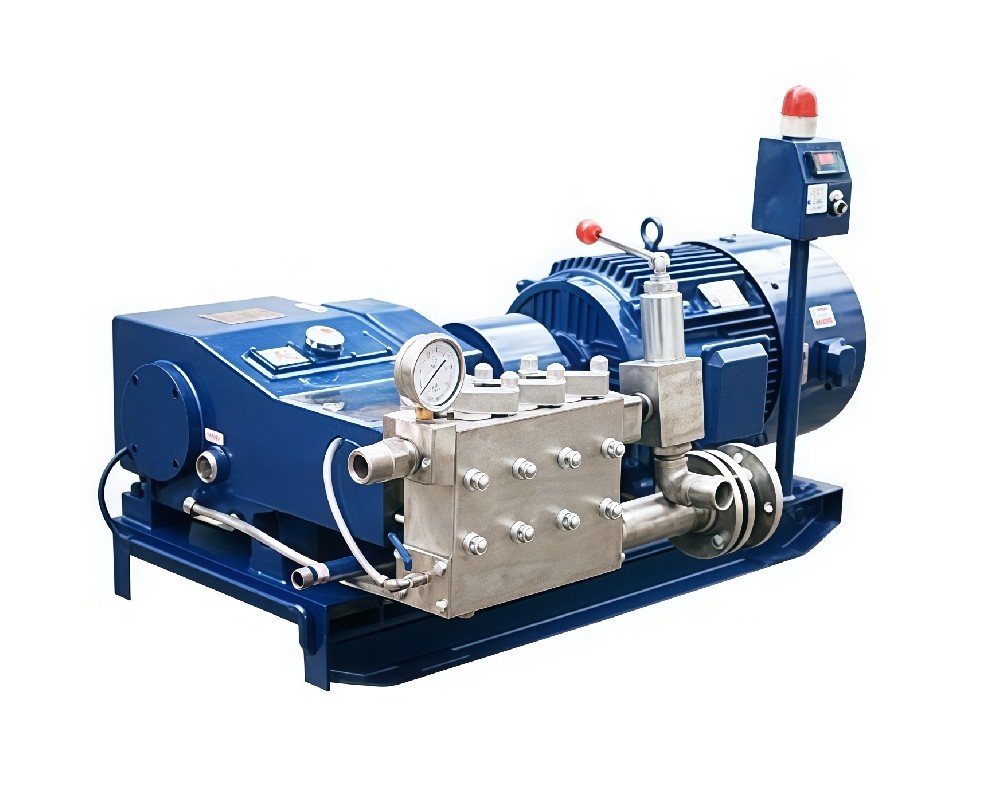

3ZX60-Plunger Pump-Wuxi Haiyan High-pressure Valve Factory

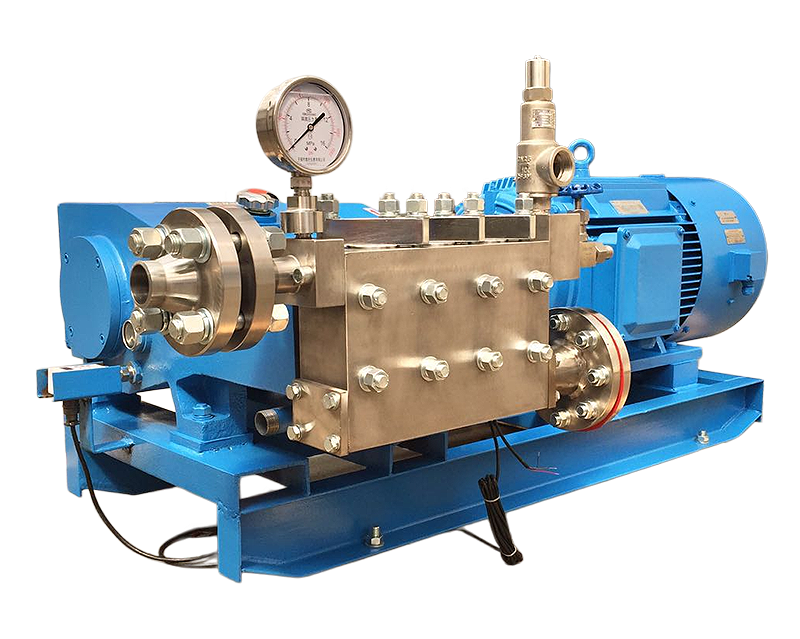

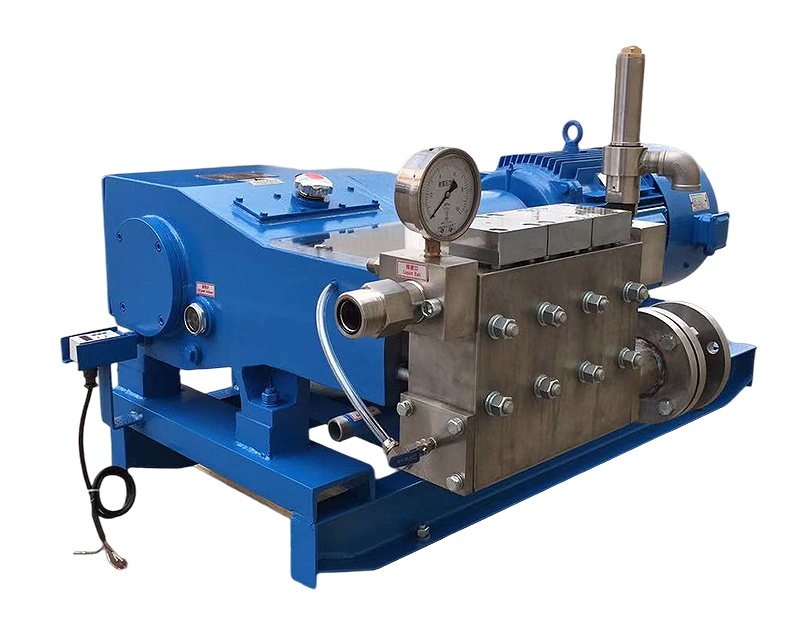

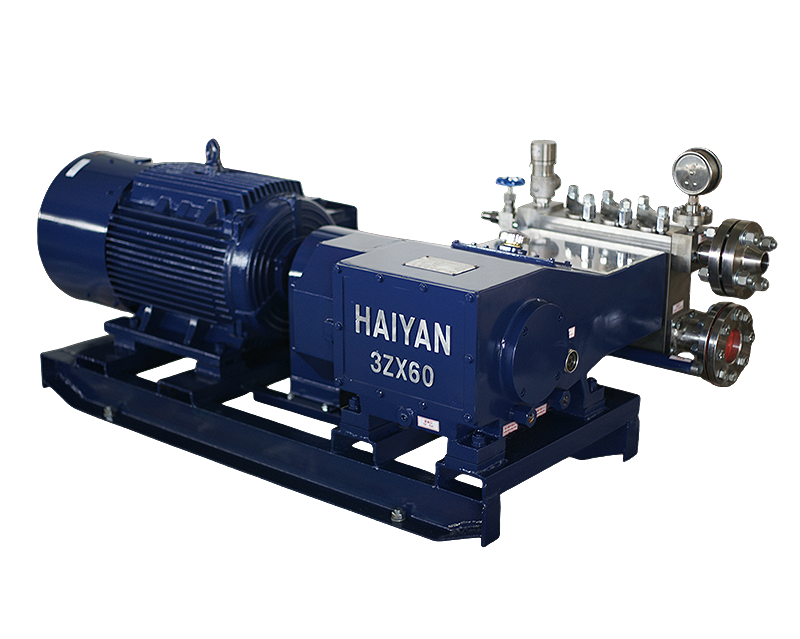

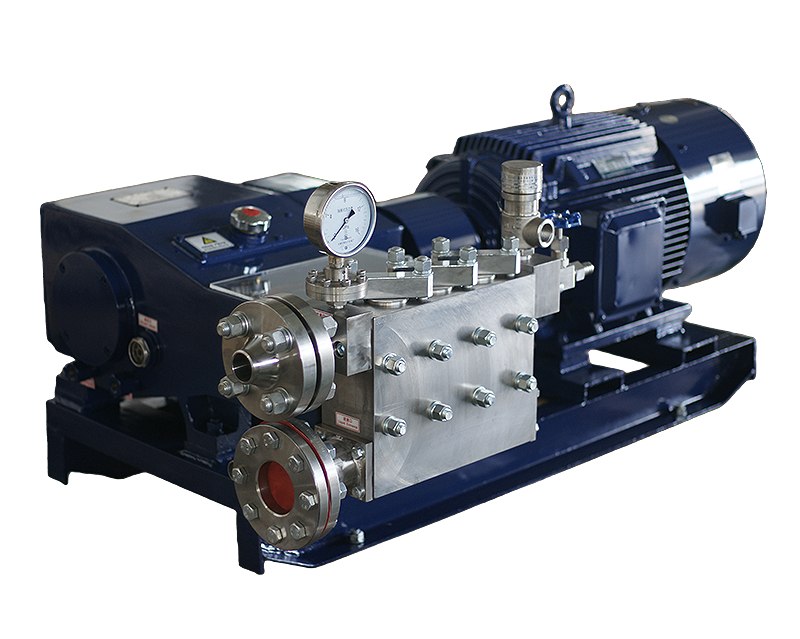

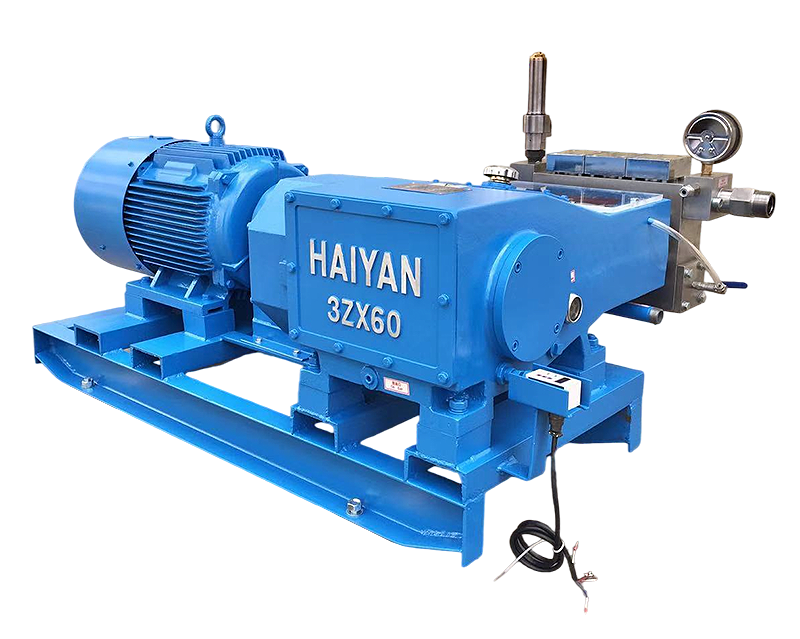

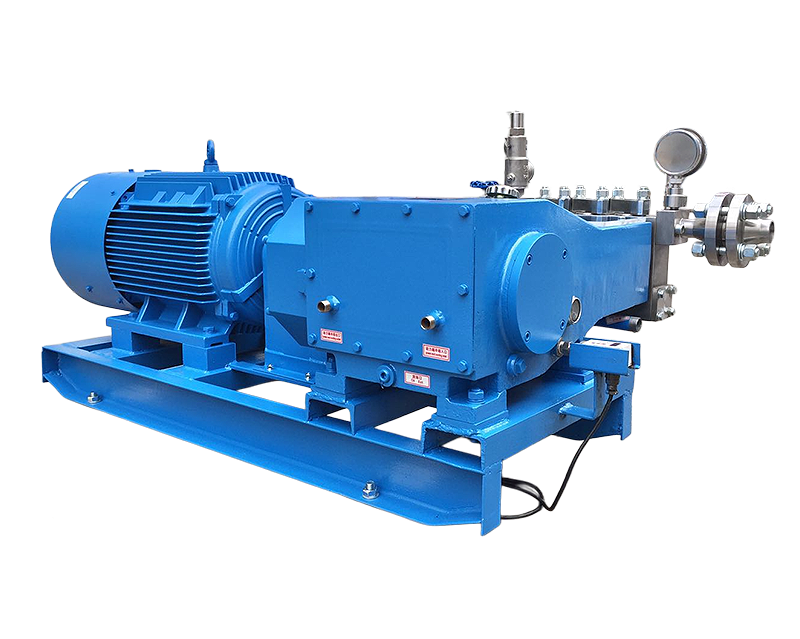

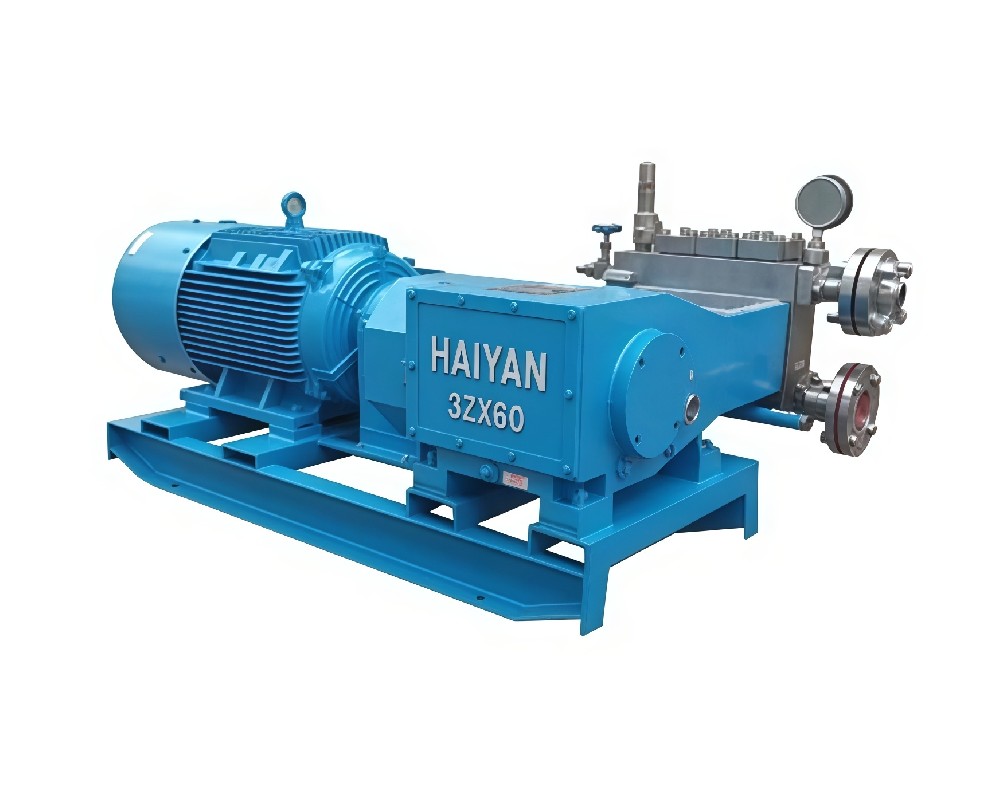

3ZX60

Stroke Length (mm) ：60
Crankcase Oil Capacity (L)：12.3
Pump Weight (KG)： 320
Recommended SPM for Continuous Duty： ≤430
Standard Gear Ratio：3.47
Optional Gear Ratio：2.65

BAOSTEEL (China) CSP Descaling Pumps
2025-11-27
Work Specifications:Wuxi Petrel supplied BAOSTEEL with descaling pumps which are originally designed···
READ MORE
NETZSCH Industrial Pumps
2025-11-26
Work Specifications:Wuxi Petrel supplied NETZSCH with industrial pumps which are originally designed···
READ MORE
Weatherford W-Series Pumps OEM
2025-11-25
Work Specifications:Since 2009, Wuxi Petrel has been serving as an OEM for Weatherford's W-serie···
READ MORE
High-Pressure Water Pump For Metal Powder Atomization
2025-11-05
Another widely used industry for our 5ZW100 pump is Metal Powder Atomization. This 450KW high pressu···
READ MORE
High Pressure Descaling Pump – CSP Line Operation Check
2025-10-16
Besides of the outlet pressure readout and vibration from the fluid end, the other significant inspe···
READ MORE
Water Jet Plunger Pump In-house Test
2025-10-11
Every pump we sell will go through a routine test run before delivery. The normal process is:1. No-l···
READ MORE

Motor Rotation Speed min-1				980								1480
Pump Rotation Speed min-1				282				370				427				558
Plunger Diameter		Nominal Pressure		Flow Rate		Effective Power		Flow Rate		Effective Power		Flow Rate		Effective Power		Flow Rate		Effective Power
mm	in	bar	psi	L/min	GPM	kw	HP	L/min	GPM	kw	HP	L/min	GPM	kw	HP	L/min	GPM	kw	HP
20	0.79	573	8150	15.95	4.21	17.1	23.2	20.92	5.53	22.4	30.5	24.15	6.38	25.9	35.2	31.55	8.34	33.8	46.0
25	0.98	367	5216	24.92	6.58	17.1	23.2	32.69	8.64	22.4	30.5	37.73	9.97	25.9	35.2	49.30	13.03	33.8	46.0
30	1.18	255	3622	35.88	9.48	17.1	23.2	47.08	12.44	22.4	30.5	54.33	14.35	25.9	35.2	71.00	18.76	33.8	46.0
35	1.38	187	2661	48.84	12.90	17.1	23.2	64.08	16.93	22.4	30.5	73.95	19.54	25.9	35.2	96.63	25.53	33.8	46.0
40	1.57	143	2038	63.79	16.85	17.1	23.2	83.69	22.11	22.4	30.5	96.59	25.52	25.9	35.2	126.22	33.35	33.8	46.0
45	1.77	113	1610	80.73	21.33	17.1	23.2	105.92	27.98	22.4	30.5	122.24	32.30	25.9	35.2	159.74	42.20	33.8	46.0
50	1.97	92	1304	99.67	26.33	17.1	23.2	130.77	34.55	22.4	30.5	150.91	39.87	25.9	35.2	197.21	52.10	33.8	46.0
55	2.17	76	1078	120.60	31.86	17.1	23.2	158.23	41.80	22.4	30.5	182.61	48.24	25.9	35.2	238.63	63.05	33.8	46.0
60	2.36	64	906	143.52	37.92	17.1	23.2	188.31	49.75	22.4	30.5	217.32	57.42	25.9	35.2	283.99	75.03	33.8	46.0
65	2.56	54	772	168.44	44.50	17.1	23.2	221.00	58.39	22.4	30.5	255.05	67.38	25.9	35.2	333.29	88.06	33.8	46.0
