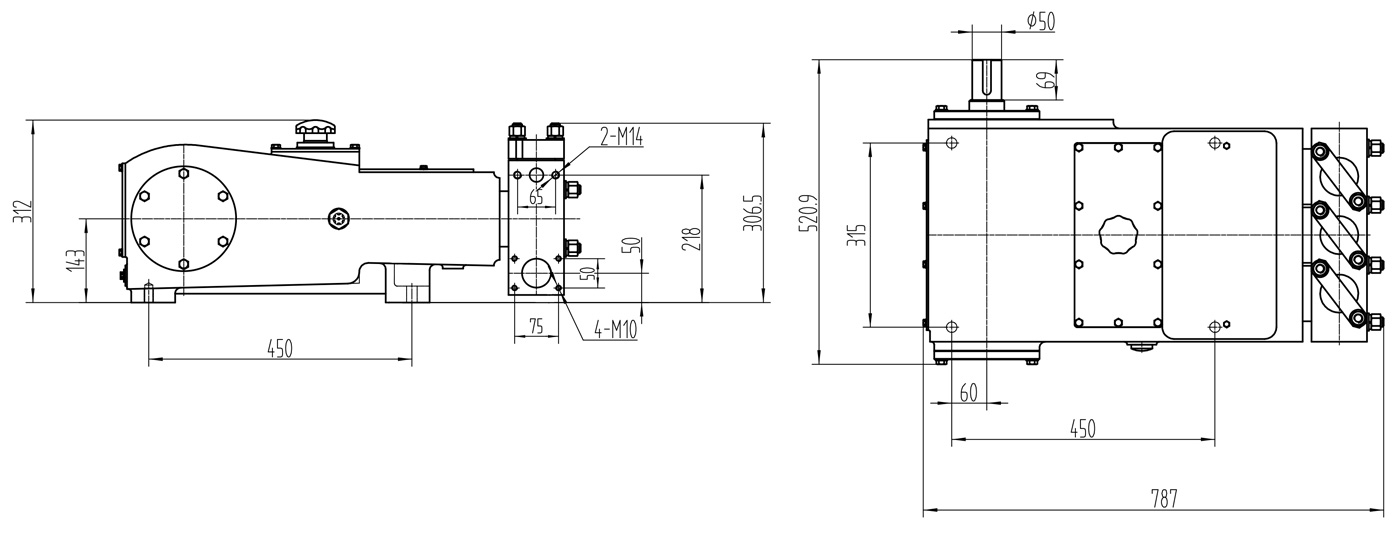

Plunger Pump
3DP60
Stroke Length (mm) ：60
Crankcase Oil Capacity (L)：8.9
Pump Weight (KG)： 256
Recommended SPM for Continuous Duty： ≤430
Standard Gear Ratio：2.88
| Strokes per Minute | 75 | 150 | 225 | 300 | 375 | 450 | 525 | 600 | 675 | 725 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Power (kw) | 3.8 | 7.6 | 11.4 | 15.1 | 18.9 | 22.7 | 26.5 | 30.3 | 34.1 | 36.6 | |
| Plunger Size(mm) | Rated Pressure(bar) | Rated Capacity(L/min) | |||||||||
| 10 | 1910 | 1.1 | 2.1 | 3.2 | 4.2 | 5.3 | 6.4 | 7.4 | 8.5 | 9.5 | 10.2 |
| 15 | 849 | 2.4 | 4.8 | 7.2 | 9.5 | 11.9 | 14.3 | 16.7 | 19.1 | 21.5 | 23.1 |
| 20 | 478 | 4.2 | 8.5 | 12.7 | 17.0 | 21.2 | 25.4 | 29.7 | 33.9 | 38.2 | 41.0 |
| 25 | 306 | 6.6 | 13.3 | 19.9 | 26.5 | 33.1 | 39.8 | 46.4 | 53.0 | 59.6 | 64.1 |
| 30 | 212 | 9.5 | 19.1 | 28.6 | 38.2 | 47.7 | 57.3 | 66.8 | 76.3 | 85.9 | 92.2 |
| 35 | 156 | 13.0 | 26.0 | 39.0 | 52.0 | 64.9 | 77.9 | 90.9 | 103.9 | 116.9 | 125.6 |
| 40 | 119 | 17.0 | 33.9 | 50.9 | 67.9 | 84.8 | 101.8 | 118.8 | 135.7 | 152.7 | 164.0 |
| 45 | 94 | 21.5 | 42.9 | 64.4 | 85.9 | 107.4 | 128.8 | 150.3 | 171.8 | 193.2 | 207.6 |
| 50 | 76 | 26.5 | 53.0 | 79.5 | 106.0 | 132.5 | 159.0 | 185.6 | 212.1 | 238.6 | 256.2 |
| 55 | 63 | 32.1 | 64.1 | 96.2 | 128.3 | 160.4 | 192.4 | 224.5 | 256.6 | 288.7 | 310.0 |
| 60 | 53 | 38.2 | 76.3 | 114.5 | 152.7 | 190.9 | 229.0 | 267.2 | 305.4 | 343.5 | 369.0 |
| 65 | 45 | 44.8 | 89.6 | 134.4 | 179.2 | 224.0 | 268.8 | 313.6 | 358.4 | 403.2 | 433.0 |
| 70 | 39 | 52.0 | 103.9 | 155.9 | 207.8 | 259.8 | 311.7 | 363.7 | 415.6 | ||
| 72 | 37 | 55.0 | 109.9 | 164.9 | 219.9 | 274.8 | 329.8 | 384.8 | 439.7 | ||
