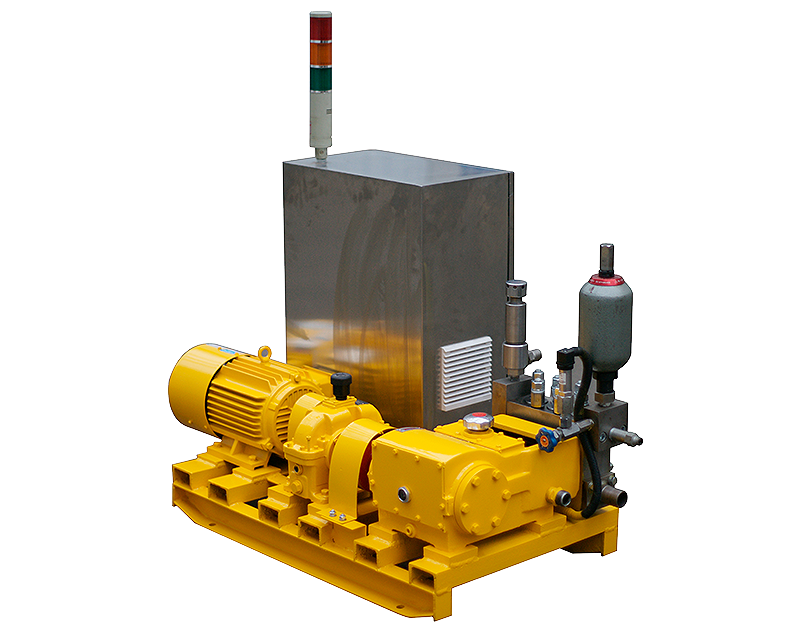

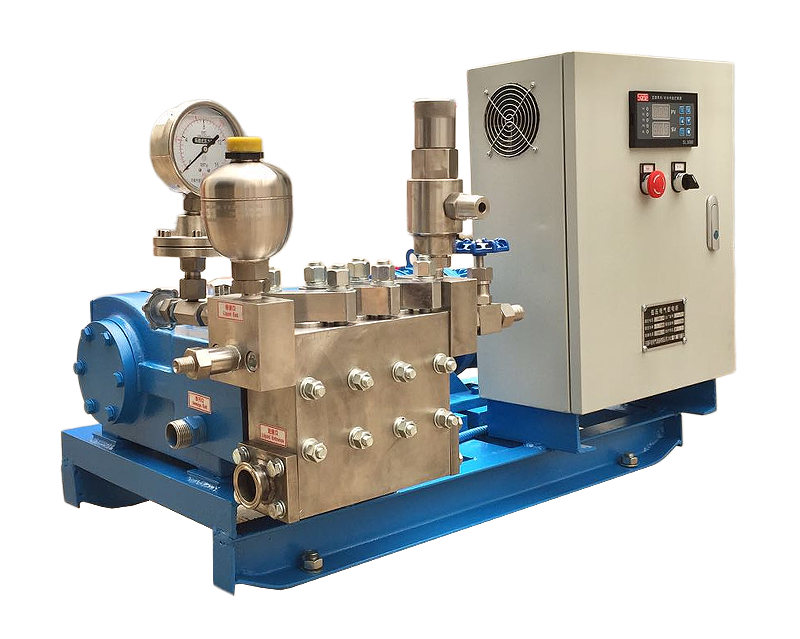

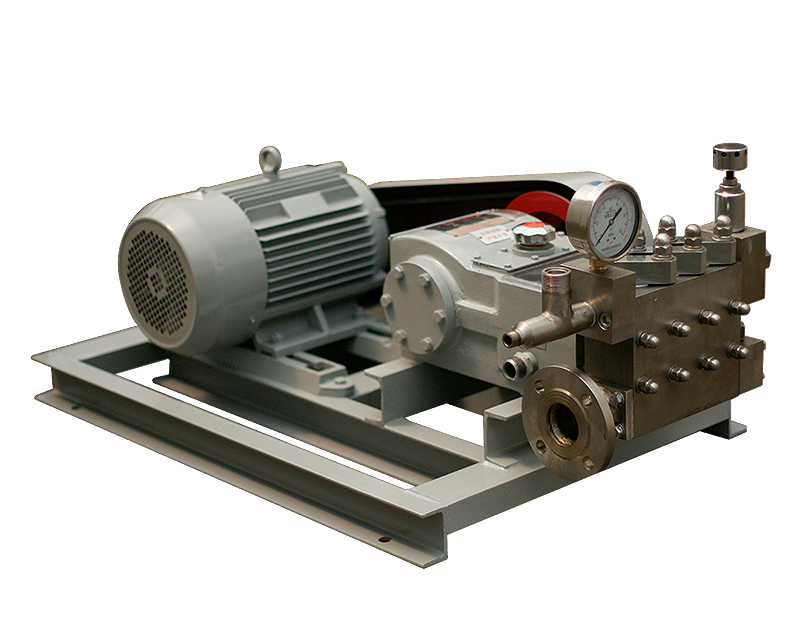

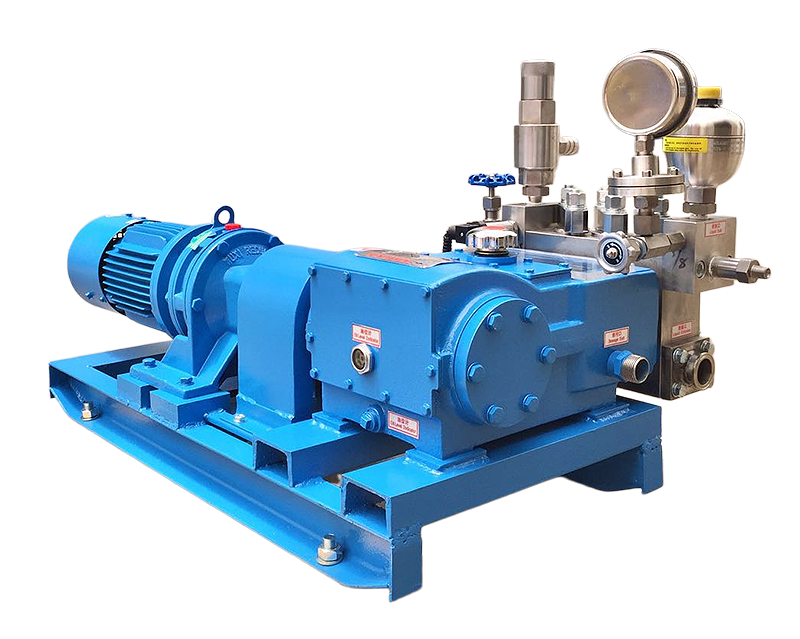

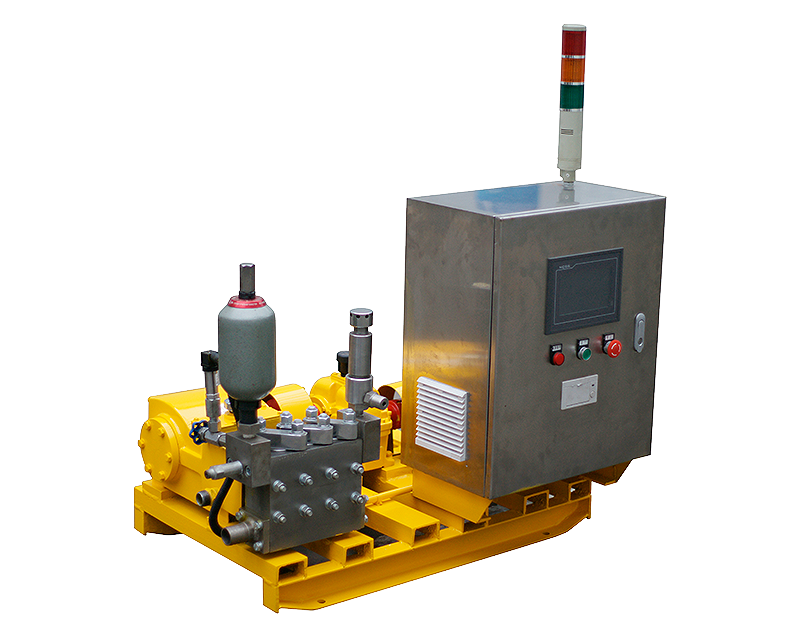

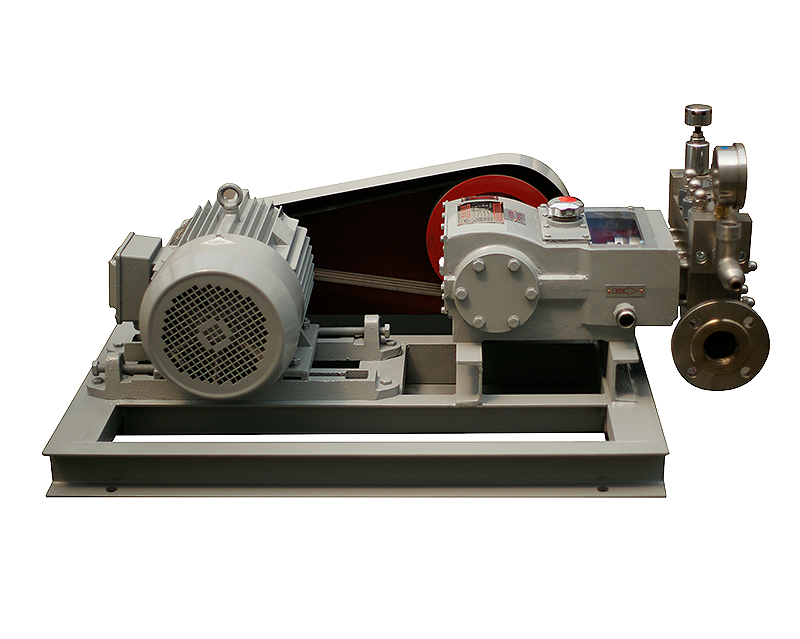

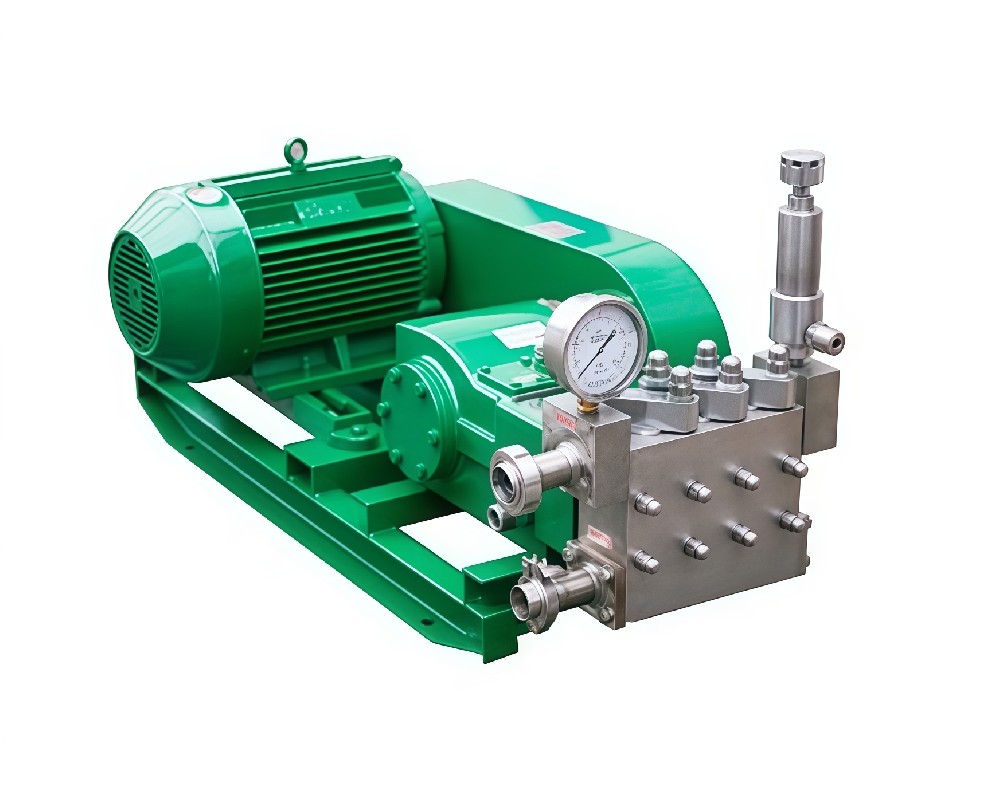

Plunger Pump

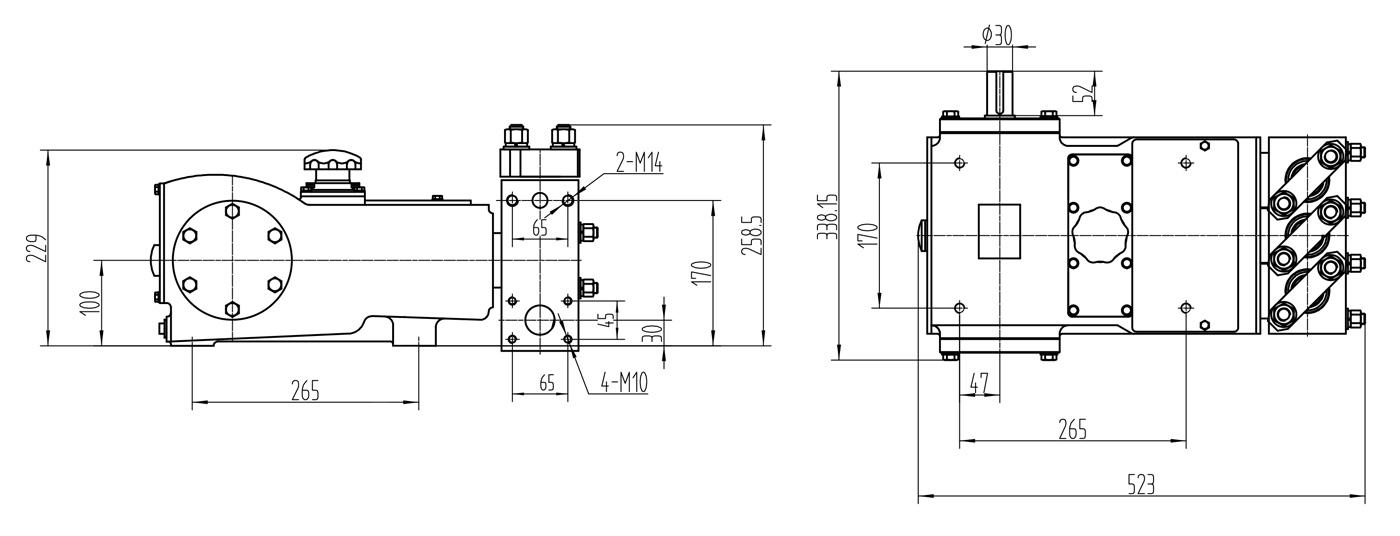

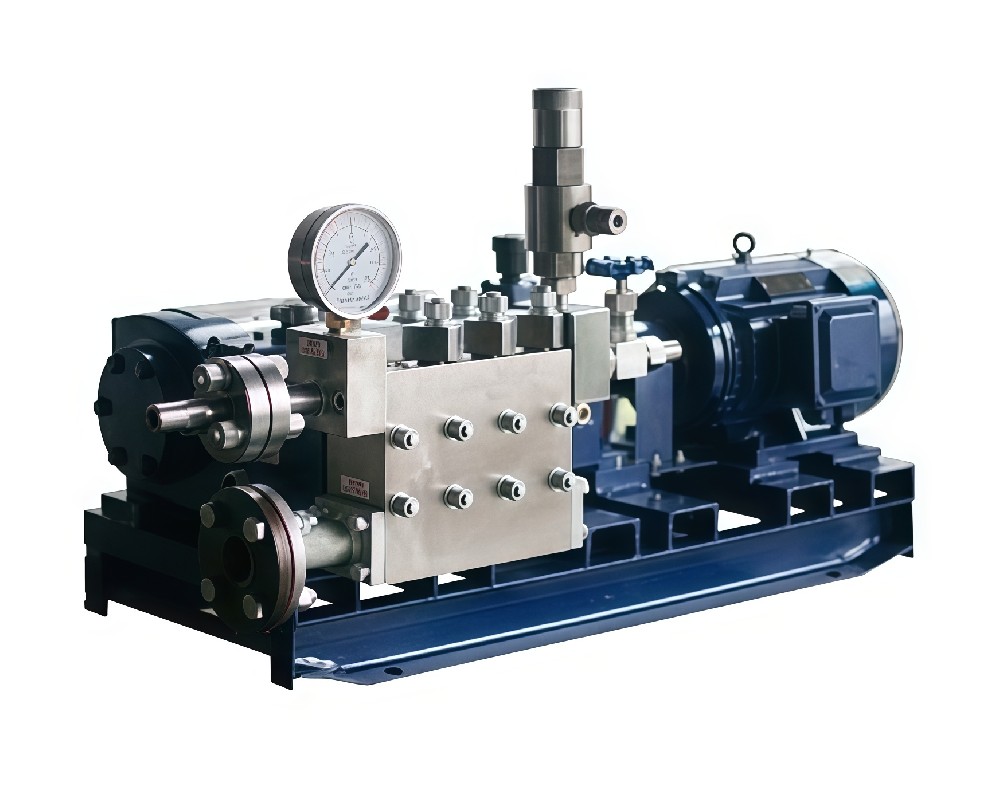

3DP35
Stroke Length (mm) ：35
Crankcase Oil Capacity (L)：2.1
Pump Weight (KG)： 107
Recommended SPM for Continuous Duty： ≤480
| Strokes per Minute | 75 | 150 | 225 | 300 | 375 | 450 | 525 | 600 | 675 | 750 | 825 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Power (kw) | 0.7 | 1.5 | 2.2 | 2.9 | 3.7 | 4.4 | 5.2 | 5.9 | 6.6 | 7.4 | 8.1 | |
| Plunger Size(mm) | Rated Pressure(bar) | Rated Capacity(L/min) | ||||||||||
| 10 | 637 | 0.6 | 1.2 | 1.9 | 2.5 | 3.1 | 3.7 | 4.3 | 4.9 | 5.6 | 6.2 | 6.8 |
| 12 | 442 | 0.9 | 1.8 | 2.7 | 3.6 | 4.5 | 5.3 | 6.2 | 7.1 | 8.0 | 8.9 | 9.8 |
| 16 | 249 | 1.6 | 3.2 | 4.8 | 6.3 | 7.9 | 9.5 | 11.1 | 12.7 | 14.3 | 15.8 | 17.4 |
| 18 | 197 | 2.0 | 4.0 | 6.0 | 8.0 | 10.0 | 12.0 | 14.0 | 16.0 | 18.0 | 20.0 | 22.0 |
| 20 | 159 | 2.5 | 4.9 | 7.4 | 9.9 | 12.4 | 14.8 | 17.3 | 19.8 | 22.3 | 24.7 | 27.2 |
| 22 | 132 | 3.0 | 6.0 | 9.0 | 12.0 | 15.0 | 18.0 | 21.0 | 23.9 | 26.9 | 29.9 | 32.9 |
| 25 | 102 | 3.9 | 7.7 | 11.6 | 15.5 | 19.3 | 23.2 | 27.1 | 30.9 | 34.8 | 38.7 | 42.5 |
| 28 | 81 | 4.8 | 9.7 | 14.5 | 19.4 | 24.2 | 29.1 | 33.9 | 38.8 | 43.6 | 48.5 | 53.3 |
| 30 | 71 | 5.6 | 11.1 | 16.7 | 22.3 | 27.8 | 33.4 | 39.0 | 44.5 | 50.1 | 55.7 | 61.2 |
| 32 | 62 | 6.3 | 12.7 | 19.0 | 25.3 | 31.7 | 38.0 | 44.3 | 50.7 | 57.0 | 63.3 | |
| 34 | 55 | 7.1 | 14.3 | 21.4 | 28.6 | 35.7 | 42.9 | 50.0 | 57.2 | |||
| 36 | 49 | 8.0 | 16.0 | 24.0 | 32.1 | 40.1 | 48.1 | 56.1 | ||||
| 38 | 44 | 8.9 | 17.9 | 26.8 | 35.7 | 44.7 | 53.6 | 62.5 | ||||
| 40 | 40 | 9.9 | 19.8 | 29.7 | 39.6 | 49.5 | 59.4 | |||||
| 42 | 36 | 10.9 | 21.8 | 32.7 | 43.6 | 54.6 | ||||||
