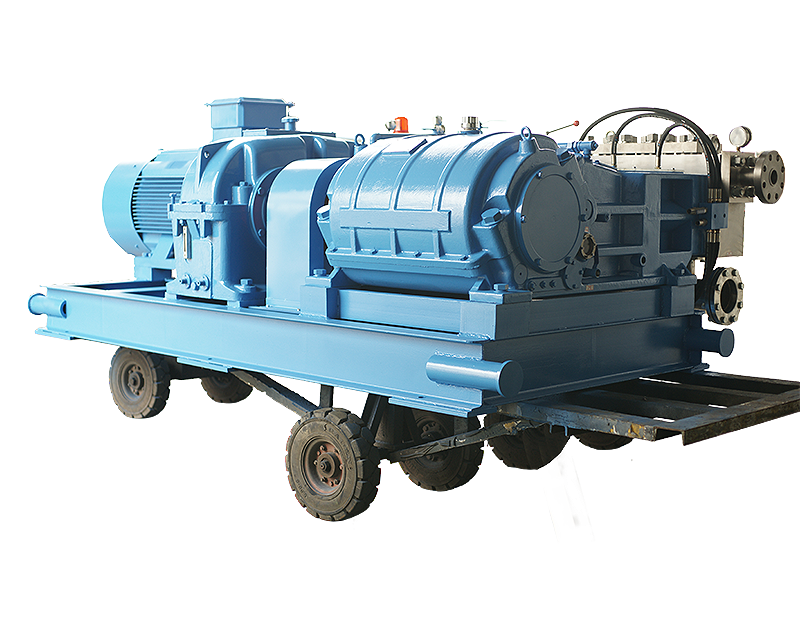

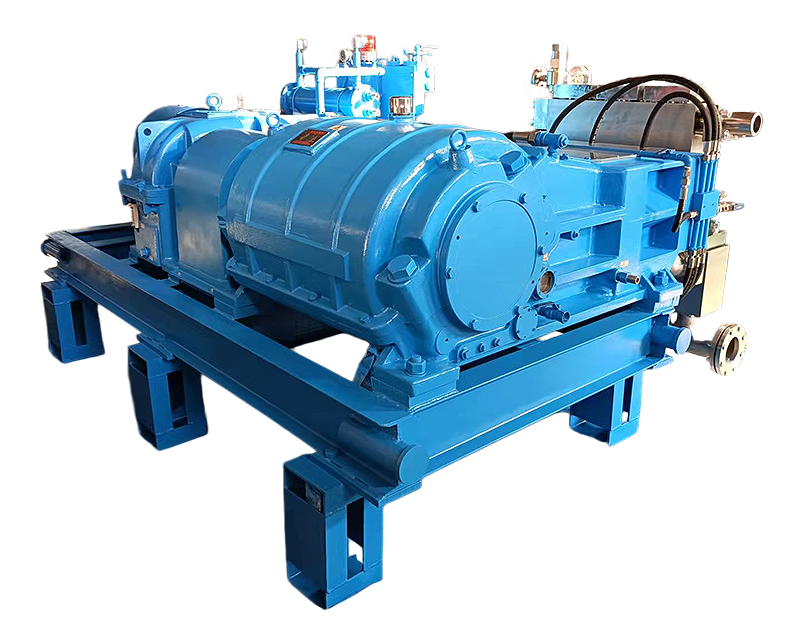

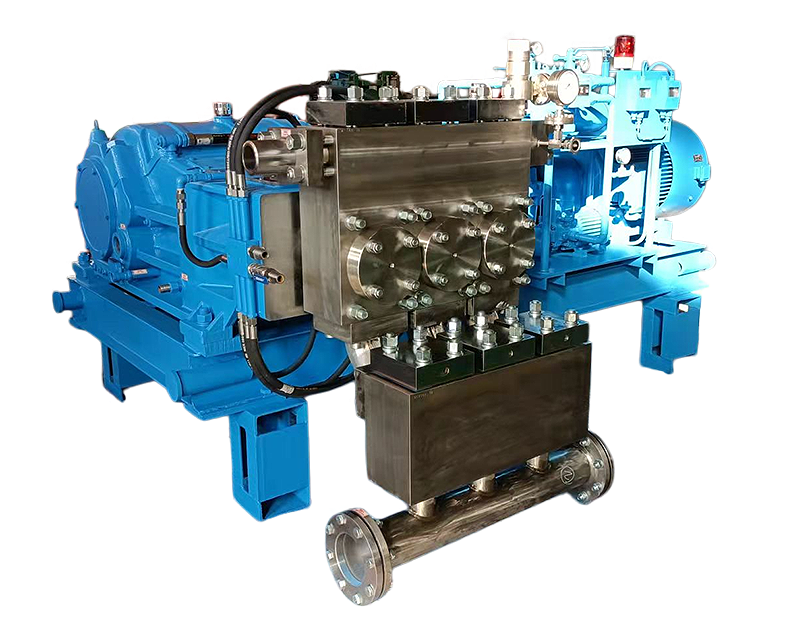

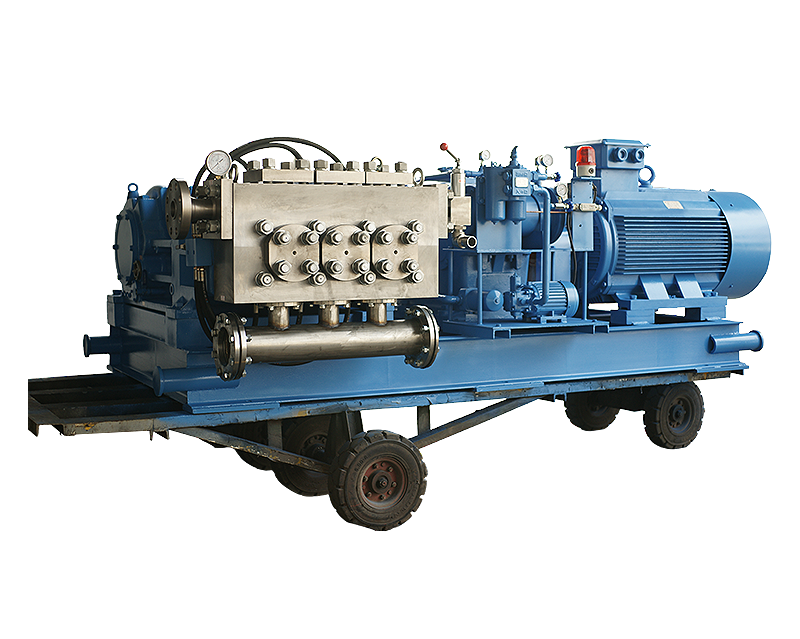

Plunger Pump
A200
Stroke Length (mm) ：200
Crankcase Oil Capacity (L)：171
Pump Weight (KG)： 7266
Recommended SPM for Continuous Duty： ≤210
| Strokes per Minute | 75 | 83 | 93 | 106 | 119 | 1133 | 149 | 166 | 186 | 210 | 237 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Power (kw) | 185.1 | 204.9 | 229.5 | 261.6 | 293.7 | 328.3 | 367.7 | 409.1 | 459.1 | 518.3 | 584.9 | |
| Plunger Size(mm) | Rated Pressure(bar) | Rated Capacity(L/min) | ||||||||||
| 80 | 438 | 226.2 | 250.3 | 280.5 | 319.7 | 358.9 | 401.1 | 449.4 | 500.6 | 561.0 | 633.3 | 714.8 |
| 85 | 388 | 255.4 | 282.6 | 316.6 | 360.9 | 405.2 | 452.8 | 507.3 | 565.2 | 633.3 | 715.0 | 806.9 |
| 90 | 346 | 286.3 | 316.8 | 355.0 | 404.6 | 454.2 | 507.7 | 568.7 | 633.6 | 710.0 | 801.6 | 904.6 |
| 95 | 310 | 319.0 | 353.0 | 395.5 | 450.8 | 506.1 | 565.6 | 633.7 | 706.0 | 791.0 | 893.1 | 1007.9 |
| 100 | 280 | 353.4 | 391.1 | 438.3 | 499.5 | 560.8 | 626.7 | 702.1 | 782.3 | 876.5 | 989.6 | |
| 105 | 254 | 389.7 | 431.2 | 483.2 | 550.7 | 618.3 | 691.0 | 774.1 | 862.4 | 966.3 | ||
| 110 | 232 | 427.7 | 473.3 | 530.3 | 604.4 | 678.5 | 758.4 | 849.6 | 946.5 | 1060.6 | ||
| 115 | 212 | 467.4 | 517.3 | 579.6 | 660.6 | 741.6 | 828.9 | 928.6 | 1034.5 | |||
| 120 | 195 | 508.9 | 563.2 | 631.1 | 719.3 | 807.5 | 902.5 | 1011.1 | ||||
| 125 | 179 | 552.2 | 611.1 | 684.8 | 780.5 | 876.2 | 979.3 | |||||
| 130 | 166 | 597.3 | 661.0 | 740.6 | 844.2 | 947.7 | 1059.2 | |||||
| 135 | 154 | 644.1 | 712.8 | 798.7 | 910.4 | 1022.0 | ||||||
