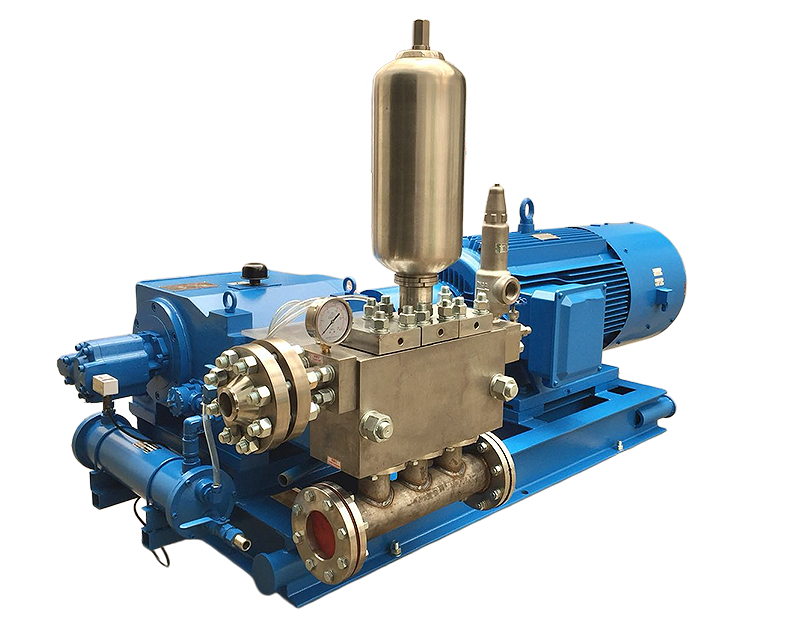

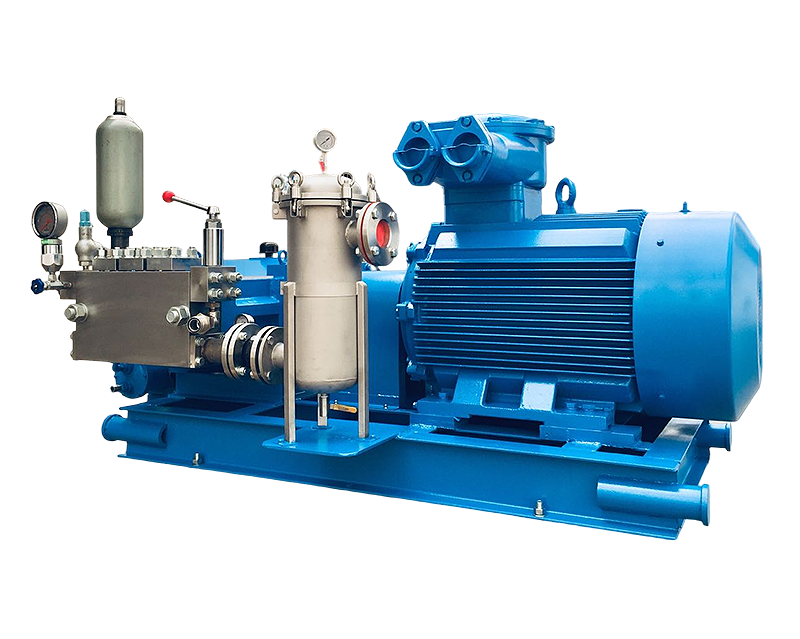

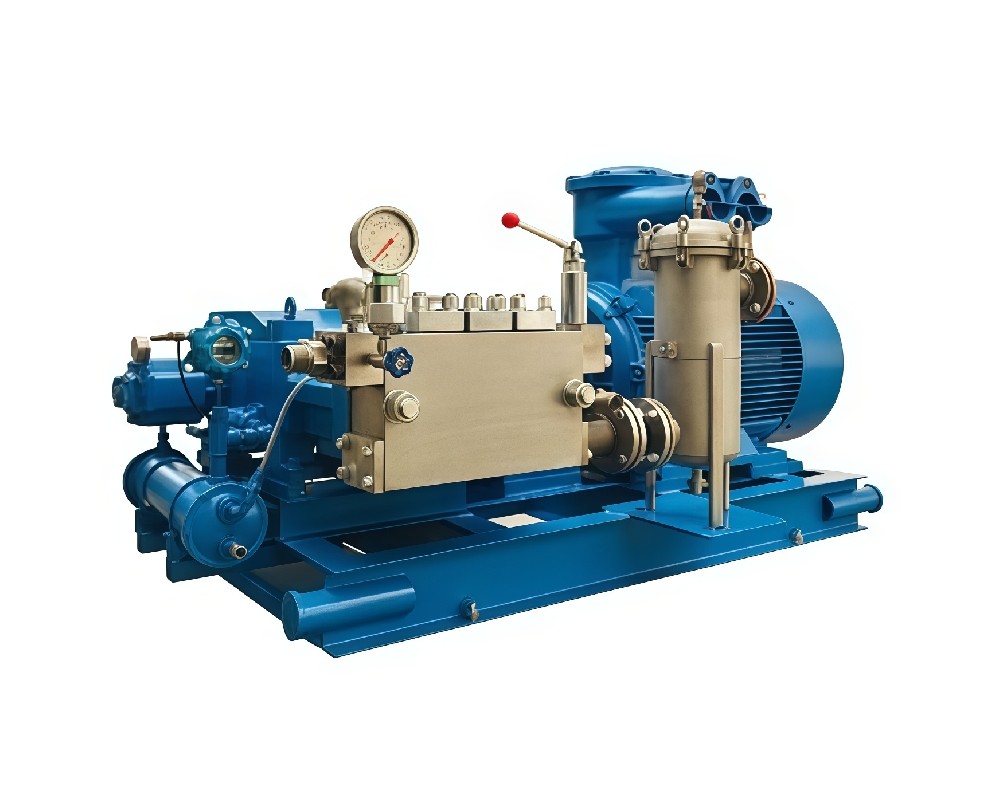

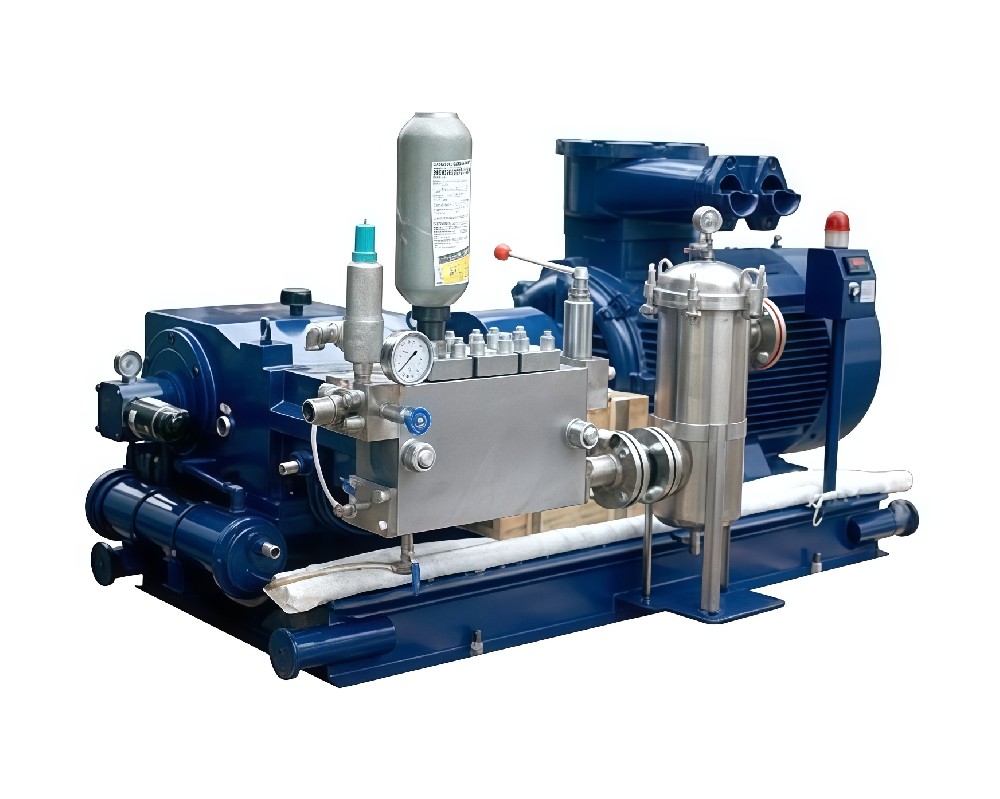

Plunger Pump

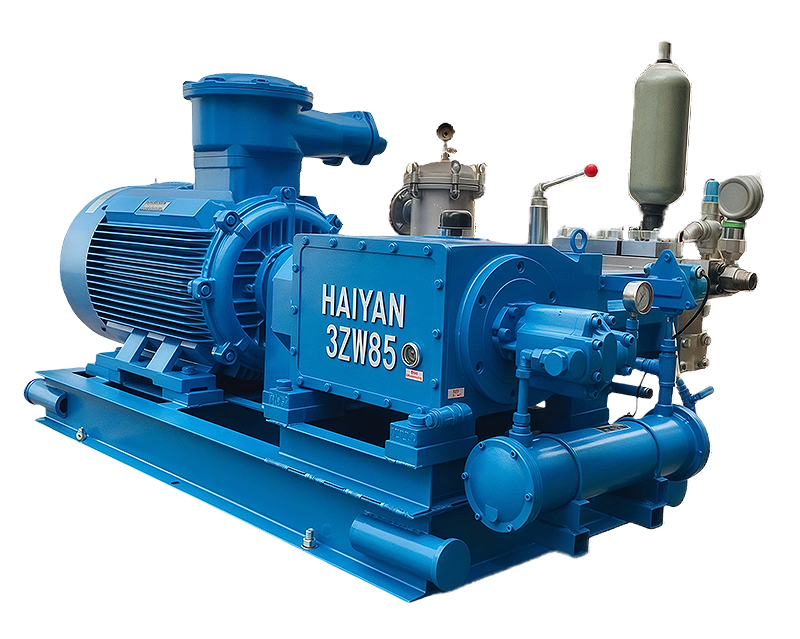

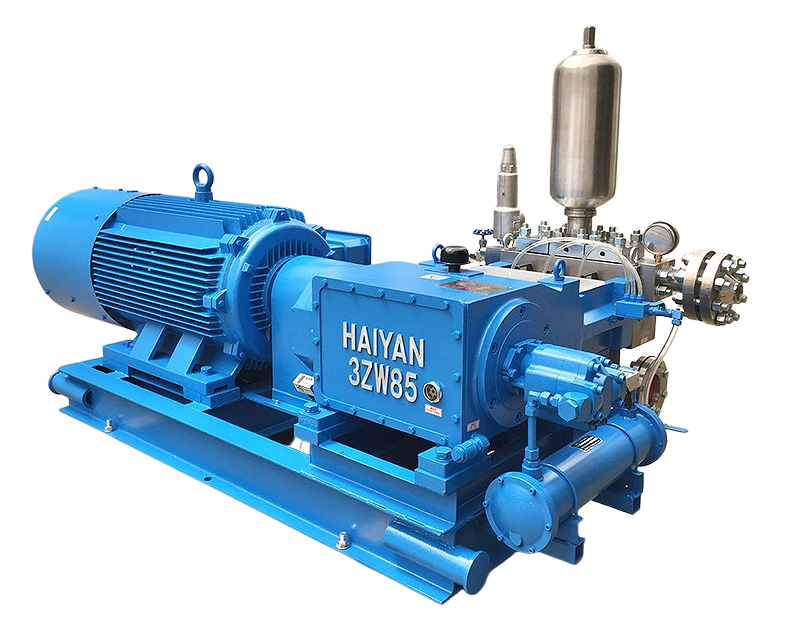

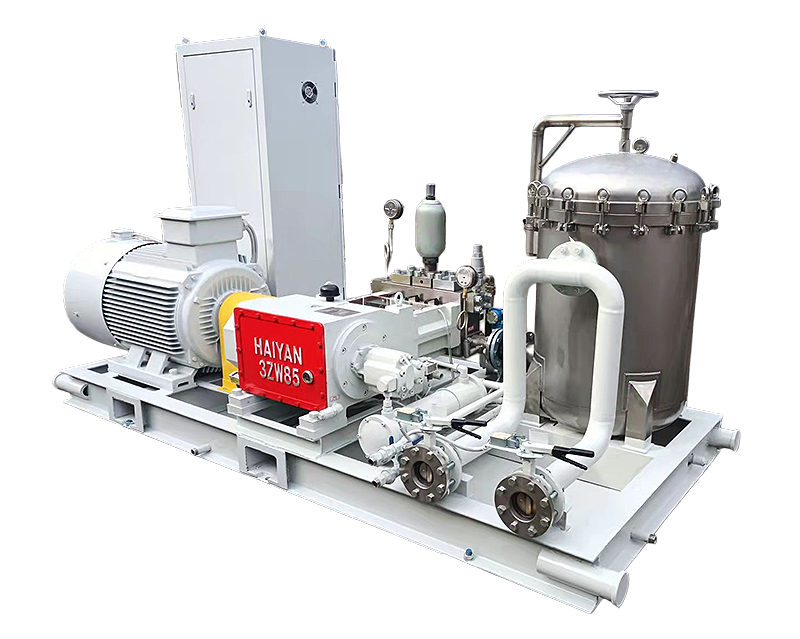

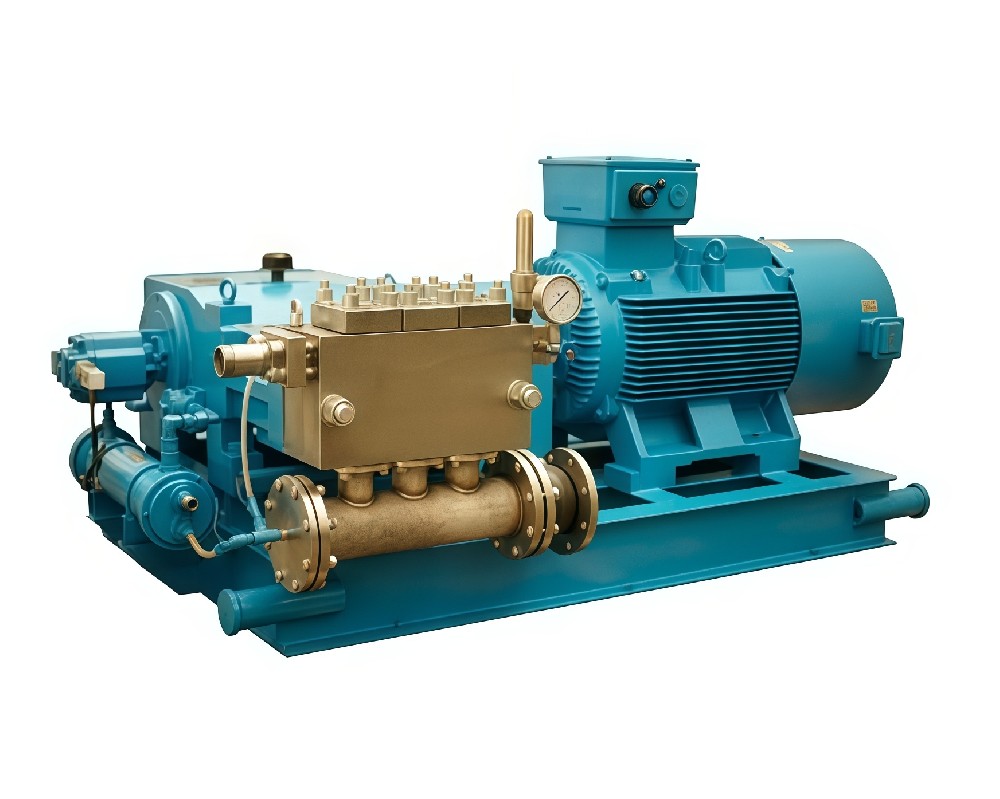

3ZW85
Stroke Length (mm) ：85
Crankcase Oil Capacity (L)：34
Pump Weight (KG)： 900
Recommended SPM for Continuous Duty： ≤380
Standard Gear Ratio：3.74
Optional Gear Ratio：3.20
Optional Gear Ratio：2.64
| Strokes per Minute | 75 | 150 | 225 | 300 | 375 | 450 | 525 | 575 | |
|---|---|---|---|---|---|---|---|---|---|
| Input Power (kw) | 23.6 | 47.2 | 70.8 | 94.4 | 118.0 | 141.6 | 165.2 | 180.9 | |
| Plunger Size(mm) | Rated Pressure(bar) | Rated Capacity(L/min) | |||||||
| 50 | 336 | 37.6 | 75.1 | 112.7 | 150.2 | 187.8 | 225.3 | 262.9 | 287.9 |
| 52 | 311 | 40.6 | 81.2 | 121.8 | 162.5 | 203.1 | 243.7 | 284.3 | 311.4 |
| 55 | 278 | 45.4 | 90.9 | 136.3 | 181.8 | 227.2 | 272.6 | 318.1 | 348.4 |
| 58 | 250 | 50.5 | 101.1 | 151.6 | 202.1 | 252.6 | 303.2 | 353.7 | 387.4 |
| 60 | 233 | 54.1 | 108.1 | 162.2 | 216.3 | 270.4 | 324.4 | 378.5 | 414.6 |
| 62 | 219 | 57.7 | 115.5 | 173.2 | 231.0 | 288.7 | 346.4 | 404.2 | 442.7 |
| 63 | 212 | 59.6 | 119.2 | 178.9 | 238.5 | 298.1 | 357.7 | 417.3 | 457.1 |
| 65 | 199 | 63.5 | 126.9 | 190.4 | 253.9 | 317.3 | 380.8 | 444.2 | 486.5 |
| 68 | 182 | 69.5 | 138.9 | 208.4 | 277.8 | 347.3 | 416.7 | 486.2 | 532.5 |
| 71 | 167 | 75.7 | 151.4 | 227.2 | 302.9 | 378.6 | 454.3 | 530.0 | 580.5 |
| 72 | 162 | 77.9 | 155.7 | 233.6 | 311.5 | 389.3 | 467.2 | 545.1 | 597.0 |
| 75 | 149 | 84.5 | 169.0 | 253.5 | 338.0 | 422.5 | 507.0 | 591.4 | 647.8 |
| 78 | 138 | 91.4 | 182.8 | 274.2 | 365.5 | 456.9 | 548.3 | 639.7 | |
| 80 | 131 | 96.1 | 192.3 | 288.4 | 384.5 | 480.7 | 576.8 | ||
