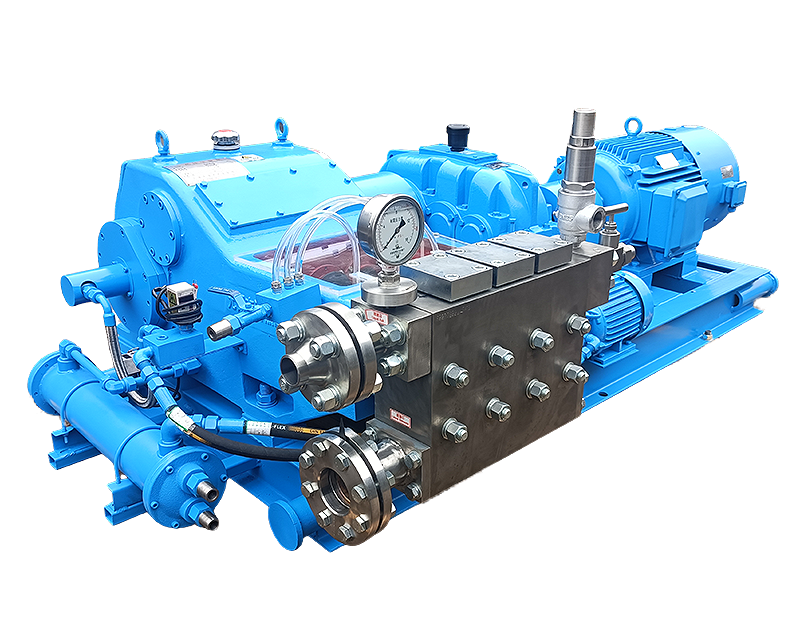

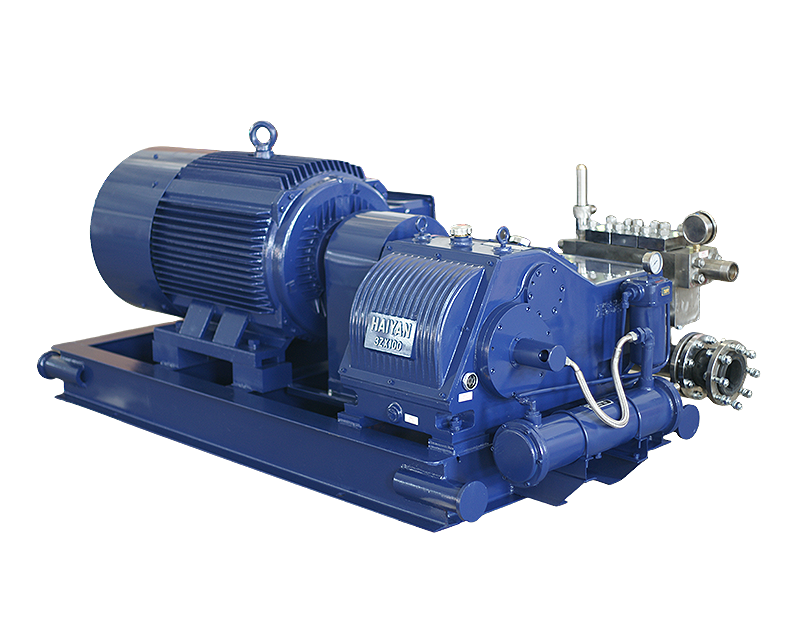

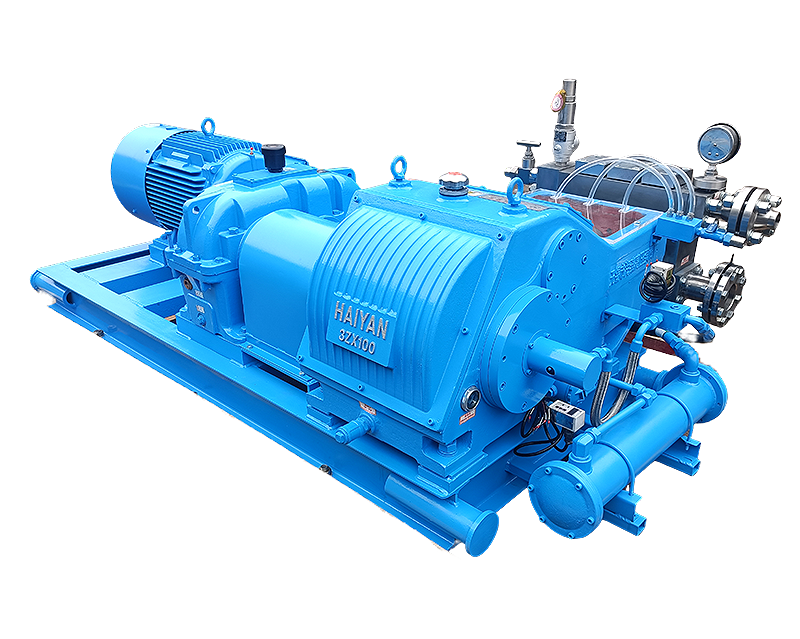

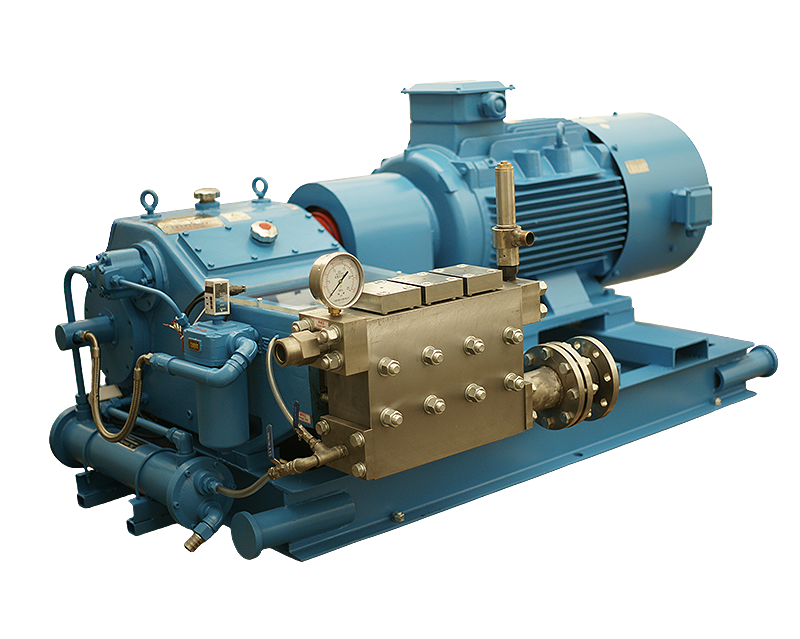

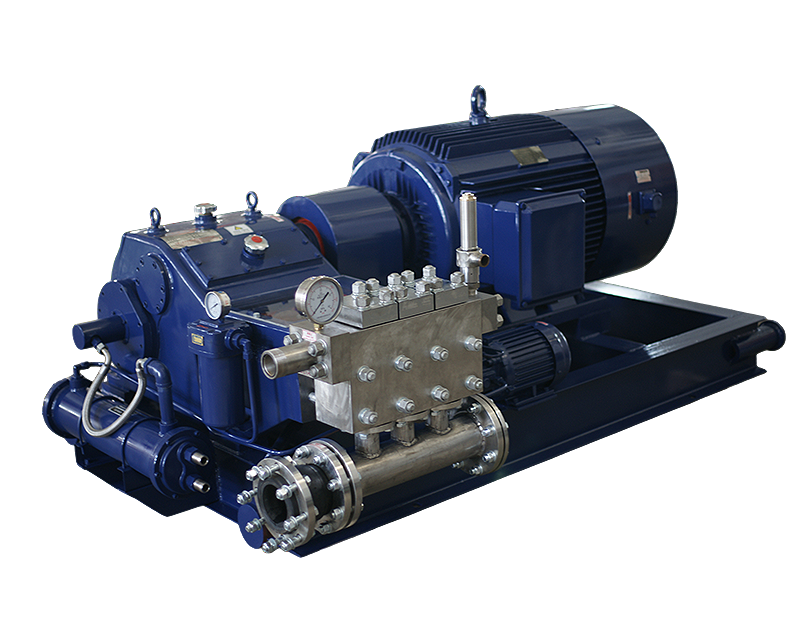

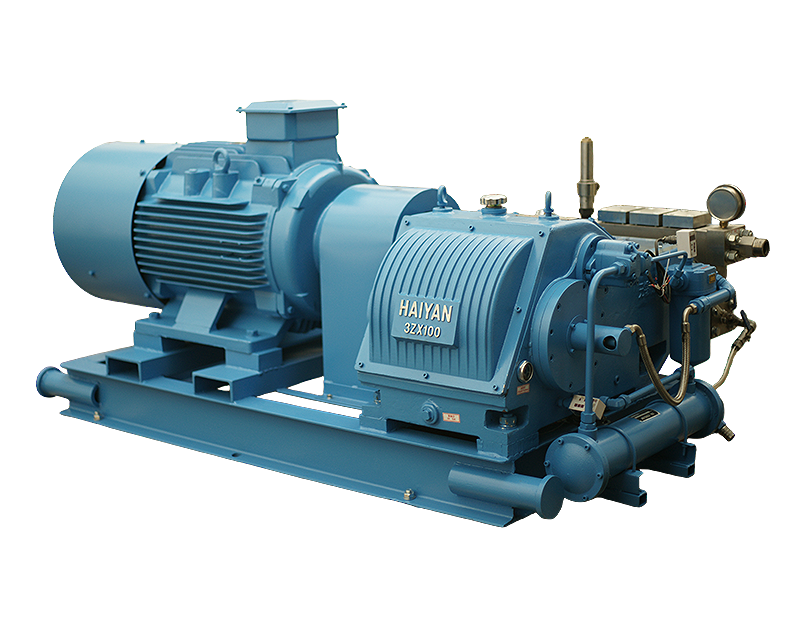

Plunger Pump
3ZX100
Stroke Length (mm) ：100
Crankcase Oil Capacity (L)：34.8
Pump Weight (KG)： 625
Recommended SPM for Continuous Duty： ≤350
Standard Gear Ratio：4.45
Optional Gear Ratio：3.83
Optional Gear Ratio：3.04
| Strokes per Minute | 75 | 125 | 175 | 225 | 275 | 325 | 375 | 425 | 475 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Input Power (kw) | 23.1 | 38.6 | 54.0 | 69.4 | 84.8 | 100.3 | 115.7 | 131.1 | 146.5 | |
| Plunger Size(mm) | Rated Pressure(bar) | Rated Capacity(L/min) | ||||||||
| 45 | 346 | 35.8 | 59.6 | 83.5 | 107.4 | 131.2 | 155.1 | 178.9 | 202.8 | 226.6 |
| 50 | 280 | 44.2 | 73.6 | 103.1 | 132.5 | 162.0 | 191.4 | 220.9 | 250.3 | 279.8 |
| 52 | 259 | 47.8 | 79.6 | 111.5 | 143.4 | 175.2 | 207.1 | 238.9 | 270.8 | 302.6 |
| 55 | 232 | 53.5 | 89.1 | 124.7 | 160.4 | 196.0 | 231.6 | 267.3 | 302.9 | 338.6 |
| 58 | 208 | 59.4 | 99.1 | 138.7 | 178.3 | 218.0 | 257.6 | 297.2 | 336.9 | 376.5 |
| 60 | 195 | 63.6 | 106.0 | 148.4 | 190.9 | 233.3 | 275.7 | 318.1 | 360.5 | 402.9 |
| 62 | 182 | 67.9 | 113.2 | 158.5 | 203.8 | 249.1 | 294.4 | 339.6 | 384.9 | 430.2 |
| 63 | 176 | 70.1 | 116.9 | 163.7 | 210.4 | 257.2 | 303.9 | 350.7 | 397.4 | 444.2 |
| 65 | 166 | 74.7 | 124.4 | 174.2 | 224.0 | 273.8 | 323.5 | 373.3 | 423.1 | 472.9 |
| 68 | 151 | 81.7 | 136.2 | 190.7 | 245.1 | 299.6 | 354.1 | 408.6 | 463.0 | |
| 71 | 139 | 89.1 | 148.5 | 207.9 | 267.2 | 326.6 | 386.0 | 445.4 | ||
